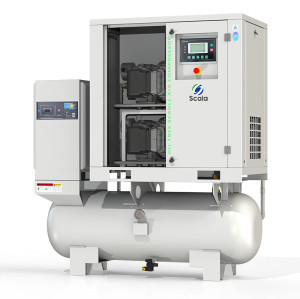

2.2kw 3.0kw 3.7kw Oil Free Air Compressor Mini Scroll Air Compressor Power Frequency Belt Driven
- Model
- SKL03/02/05T-Y22/30/37-8/10X
Item specifics
- Color
- Beige
- Electricity
- AC 220V/380V 50Hz
- Pressure
- 8/10 bar
- Air Flow
- 0.2-0.4m³/min
- Noise
- 65dB(A)
Review
Description
| Model | SKL03T-Y22-8X | SKL02T-Y30-8X | SKL05T-Y37-8X | SKL03T-Y22-10X | SKL02T-Y30-10X | SKL05T-Y37-10X |
| Pressure | 0.8Mpa | 1.0Mpa | ||||
| Air Flow | 0.24m³/min | 0.3m³/min | 0.4m³/min | 0.20m³/min | 0.26m³/min | 0.35m³/min |
| Power | 2.2Kw (3HP) | 3.0Kw (4.0HP) | 3.7Kw (5.0HP) | 2.2Kw (3HP) | 3.0Kw (4.0HP) | 3.7Kw (5.0HP) |
Electricity | AC 220V/380V 50Hz | |||||
Air Outlet | G 1/2 | |||||
Dimensions | 600x560xH800mm | |||||
Weight | 100Kg | 103Kg | 112Kg | 100Kg | 103Kg | 112Kg |
Noise | 65dB(A) | 65dB(A) | 65dB(A) | 65dB(A) | 65dB(A) | 65dB(A) |
