Zero Purge Loss Blower Heated Adsorption Desiccant Air Dryer with Dew Point Control
Zero Purge Loss Blower Heated Adsorption Desiccant Air Dryer with Dew Point Control
Price
US $13500
Model
XBZ1000
MOQ
1 piece

Item specifics

Inlet flow capacity
85m3/min
Max pperating pressure
10barg
Pressure dew point
- 70 deg c
Inlet/outlet connection
DN150
Purge loss
0%
Vessel standard
GB/ CE PED/ASME
Power supply
380V-3phase-50HZ
Vessel standard
GB/ASME/CE/PED

Review

Description

Product Overview


Zero Purge Loss Blower Heated Desiccant Dryer with Dew Point Control

XBZ Series zero purge loss desiccant air dryers meet the air quality requirements for ultimate drying, use blower to regenerate the desiccant after heating, and use the product air to blow the regeneration tower, and the gas consumption is zero.
XBZ zero loss dryers blow heated air to regenerate the desiccant to get stable pressure dew point and fully dry compressed air, with very small amount of compressed air consumption.
FEATURES AT A GLANCE

Increased Blower Capacity – Larger blower for improved airflow and regeneration efficiency.

Upgraded Heater System – Higher-power heater for faster and more effective desiccant reactivation.

Copper Busbar Heat Dissipation in Control Cabinet – Enhanced thermal management using copper busbars to reduce overheating risks.

Temperature Sensors & Shunt Trip for Heater Safety –

     Integrated temperature monitoring points for real-time heat tracking.

     Shunt trip (undervoltage release) to cut power automatically if unsafe conditions are detected.

High-Temp Heater Cables – 500°C-rated cables to withstand extreme heat and ensure long-term reliability.

Updated Control Program – New software logic for optimized drying cycles, energy efficiency, and fault protection.

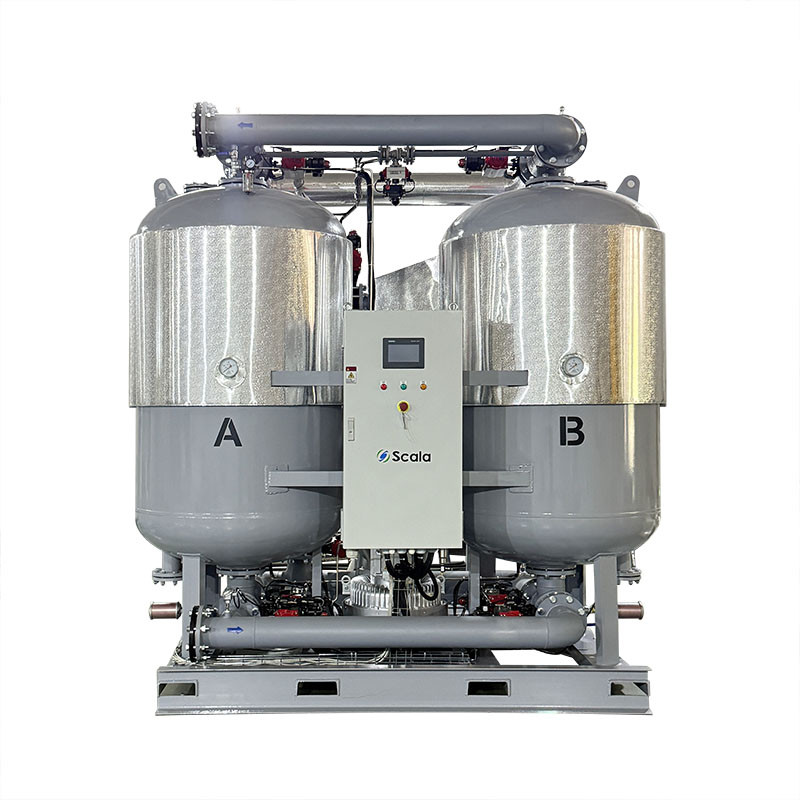

Zero purge loss desiccant dryer_desiccant dryer_blower heated desiccant dryer

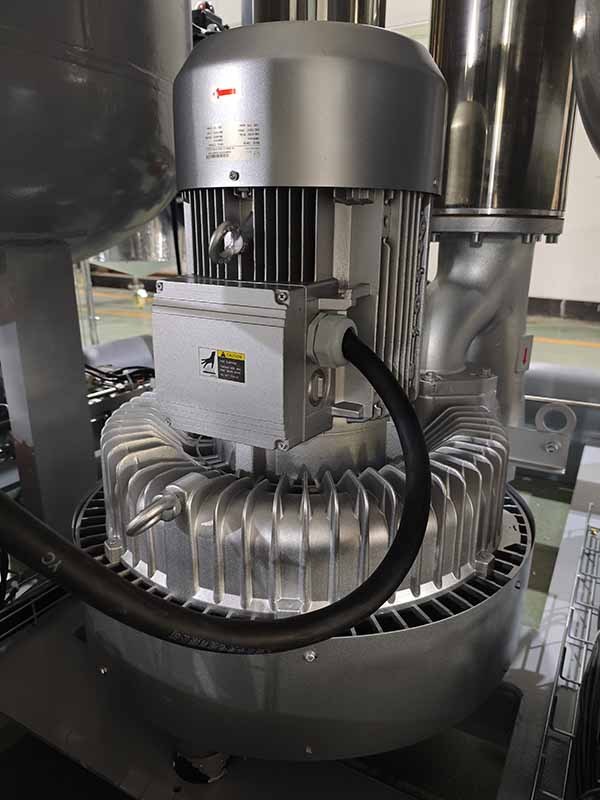

blower of desiccant dryer_adsorption dryer_blower heater dryer
Blower

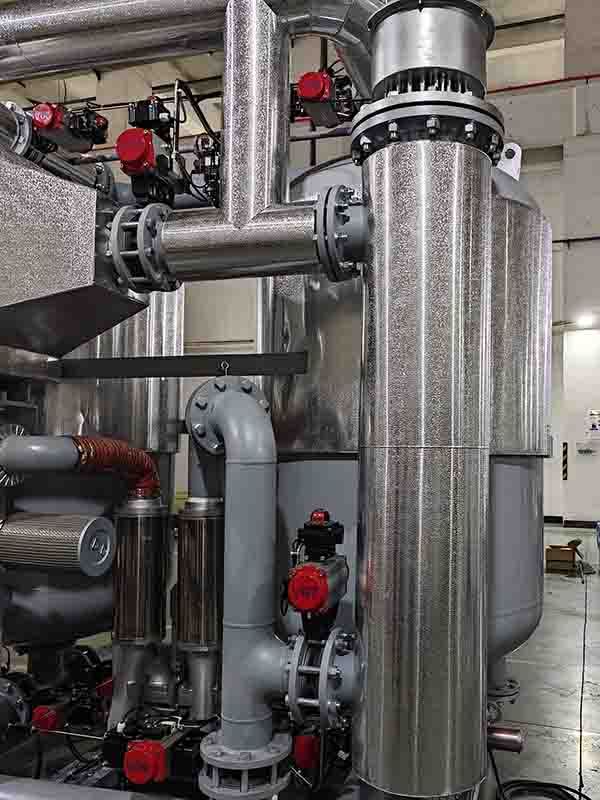

heater of desiccant dryer_adsorption dryer_blower heater dryer
Heater
Dew Point Sensor_desiccant dryer_adsorption dryer
Dew Point Sensor
COMPETITIVE ADVANTAGES
Modular design – the reasonable overall layout, the towers and pipeline control are designed independently for easy transportation, installation and maintenance.

High-quality desiccant - use high-efficient and durable desiccant for high adsorption efficiency, stable dew point and long life.

Professional design optimization – the tower body design is optimized through fluid mechanics calculation in order to ensure the uniform distribution of airflow, give full play to the effect of desiccant and to ensure the promised pressure dew point.

High quality components – high performance and temperature resistance butterfly valve, reasonable pipeline flow rate design,overall equipment pressure loss reduction, safe and reliable stainless-steel instrumentation and wiring, international brand Instrumentation.

Humanization service – Provide technical and professional pre-sales, after sales service and customized design of the complete range of products. Please consult the company for details.

Intelligent control- Siemens PLC controller and color touch screen, user friendly and intuitive, comprehensive data,easy to operate. Remote monitoring options are available.


PRODUCT CONFIGURATION
Blower of desiccant dryer
High quality centrifugal air blower from world leading brand
Heater of desiccant dryer
Larger heater for faster and more effective desiccant reactivation
Dew point sensor of desiccant dryer
Michell Dew point sensor with dew point control -50℃ ~ -80℃ option
TECHNICAL DATA
Model
Pressure Dew Point
Inlet Capacity
Heater Power
Blower Power
Inlet/Outlet Connection
Dimensions
Weight

PDP
m3/min
Kw
Kw
LxWxH mm
Kg
XB200
-40℃/-70℃
20
9
1.6
DN65
1365x840x2400
1120
XB250
-40℃/-70℃
25
12
2.2
DN80
1415x850x2450
1280
XB300
-40℃/-70℃
30
12
2.2
DN80
1715x910x2520
1430
XB350
-40℃/-70℃
35
15
4
DN80
1765x910x2565
1600
XB420
-40℃/-70℃
42
18
4
DN80
2115x1100x2616
1950
XB480
-40℃/-70℃
48
21
5.5
DN100
2165x1100x2640
2100
XB550
-40℃/-70℃
55
24
5.5
DN100
2215x1100x2665
2400
XB660
-40℃/-70℃
65
27
5.5
DN125
2265x1100x2720
2630
XB840
-40℃/-70℃
84
36
7.5
DN125
2450x1500x2650
3800
XB1100
-40℃/-70℃
110
46
8.5
DN150
2650x1650x2670
4700
XB1350
-40℃/-70℃
135
50
12.5
DN150
2800x1700x2780
5425
XB1650
-40℃/-70℃
165
63
12.5
DN200
3215x2000x2715
6855
XB2300
-40℃/-70℃
230
90
15
DN200
3620x2100x2850
8700
* Final dimensions and weights may vary slightly depending on the actual situation
Note:
Standard working pressure: 7 barg;Allowed working pressure: 4.5- 10 barg
Standard inlet temperature:35℃;Allowable inlet temperature:1- 45℃
Standard ambient temperature: 25℃;Allowed ambient temperature: 1-45℃

Correction Factor
Inlet temperature
Working Pressure  barg
4
5
6
7
8
9
10
≤ 35
0.622
0.748
0.874
1.0
1.126
1.252
1.378
40
0.473
0.569
0.665
0.761
0.953
0.930
1.049
45
0.362
0.436
0.510
0.584
0.658
0.732
0.806
OUR WORKSHOP
Production line of small and middle flow desiccant air dryers,including heatless, heated and blower purge dryers.
Our assemble line is very tiny, all of the parts are fabricated at third workshop , no on-site welding parts, which means the dryers are fully assembled type.
Production workshop of large flow desiccant air dryers,including large blower purge desiccant dryers,heat of compression dryer and other zero purge dryer.
All the dryer's components are designed by 3D software and fabricated at third workshop,no on-site welding parts means the production time is faster .
