Price
US $39800
Model
LN20 Compact
MOQ
1 piece

Item specifics

Production rate
20 Liters/day ( 0.83 liters/hour)
Dewar tank capacity
35 Liters
Power
3.0 kw
Cooling type
air-cooled
Power supply
single phase,230v, 50Hz,60Hz
Dimensions
80x60x175cm (LxWxH)
Weight
350 kg
Noise level
<60dBA@1meter

Review

Description

20liters/day small LN2 liquid nitrogen generator for scientific laboratory

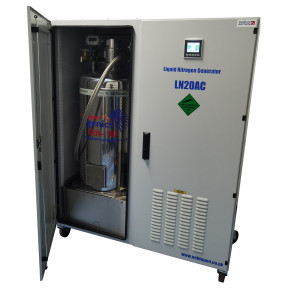

LN20AC Compact liquid nitrogen generators from Noblegen are a simple plug and produce LN2 solution. An internal PSA nitrogen generator combined with a cryo-cooler, helium compressor and internal dewar all controlled through a colour graphic HMI touch-screen gives a fully auotmated system at the touch of a button.

The liquid nitrogen is stored within a suitable sized vacuum insulated tank and the product can be dispensed using a 1.5 metre vacuum insulated hose provided. Other options of dispense methods are available on request.
FEATURES AT A GLANCE
Air cooling, no water chiller
required.
Internal air compressor.

Nitrogen produced using
 PSA nitrogen generator.

LN2 at 99% purity.

Nitrogen injection system for
pre-cooling of gas prior to
liqueficiation.

35 Litre LN2 storage dewar.

All cryogenic parts are vacuum insulated.

Colour touch screen control.
Small footprint.
Low noise

Front elevation
Left elevation
Right elevation




00:22
00:23


LN20AC Compact liquid nitrogen generator is your reliable and efficient on-site plug and produce cryogenic solution. With a small footprint, low power consumption and no need for cooling water or water chiller makes the LN20AC one of the best solutions available on the market. With integrated cooling fans can operate with air cooling up to +32°c ambient temperatures making it suitable to operate in most parts of the World.


For higher ambient temperatures up to +52°c we recommend the LN20 water cooled system. Simply connect the power and press start for the machine to automatically produce liquid nitrogen when needed. An intelligent level sensor system means you can select the liquid level stop and start using the touch screen controller so you always have enough LN2.
PRODUCT SPECIFICATIONS
No
Item
Data
1
Liquid nitrogen production  rate
>20 litres/day (>0.83 litres/hour)
2
Dimensions (cm)
80(L) x 60( W) x175( H)
3
Dewar tank capacity
35 liters
4
Total power
3.0 Kw
5
Power supply
single phase :220v,230v, 50Hz,60Hz
6
Cooling type
air-cooled
7
Ambient temperature range
4°c to 32°c
8
Altitude
< 3000m
9
Compressed air requirement
internal oil-free air compressor
10
Nitrogen requirement
internal PSA ntrogen generator
11
Noise level
<60dBA@1meter
12
Liquid nitrogen pressure
1.4 barg
13
Certification
Dewar - EN 13458/97/23/EC;  - CE /ISO9001:2008
