1.1kw 2bar Mini compressor Oil free scroll Oxygen generation oxygen production air compressor SG09ZY
- Model
- SG09ZY
Item specifics
- Power
- 1.1Kw
- Air flow
- 260L/min
- Pressure
- 0.2Mpa
- RMP
- 1500
- Voltage
- AC 220/380V
- Air inlet
- G 3/4
- Air outlet
- G 1/2
- Noise
- <59dB(A)
- Dimension
- 350x243x243mm
- Weight
- 12kg
Review
Description

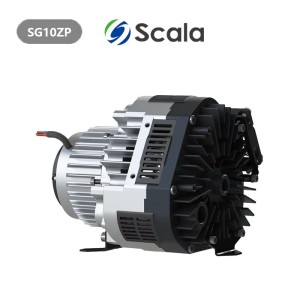

| Model | SG09ZP | SG09ZY | SG10ZP |
Moter Type | Permanent Magnet | Power Frequency | Permanent Magnet |
| Air Flow | 260m³/min | 260m³/min | 60m³/min |
| Presssure | 2.0 Bar | 2.0 Bar | 2.0 Bar |
| RPM | 1500 | 1500 | 1600 |
Power | 1100W | 1100W | 350W |
Voltage | AC 220/380V | AC 220/380V | DC 12/24V AC 220/380V |
Air Inlet | G 3/4 | G 3/4 | G 3/8 Female |
Air Outlet | G 1/2 | G 1/2 | G 1/4 Female |
Noise | <59dB(A) | <59dB(A) | <59dB(A) |
Working Temperature | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ |
Cooling Type | 220V Axial Fan | 220V Axial Fan | DC 24V / AC 220V Axial Fan |
Dimensions | 350x243x243mm | 350x243x243mm | 183x162x139mm |
Weight | 12kg | 12kg | 4kg |
