3.0kw 4HP 4bar Oil Free Scroll air End for Iwata Hitachi Atlas Scroll air Compressor Replace Belt-driven SG04T
- Model
- SG04T
Item specifics
- Power
- 3.0Kw (4HP)
- Air flow (0.4Mpa)
- 440/min
- RPM (0.4Mpa)
- 2850
- Outlet
- Rp 3/8
- Dimensions
- 345x289x263 mm
- Weight
- 16Kg
- Color
- Silver + Black
- Warranty
- 1 Year
- Place of origin
- Zhejiang, China
Review
Description
| Model | Power kW (HP) | Pressure Mpa | RPM | Air Flow L/min | Outlet | Dimension mm | Weight Kg |
SG02T | 3 (4) | 0.8 | 3000 | 300 | Rp 3/8 | 404x330x292 | 16 |
1.0 | 2700 | 260 | |||||

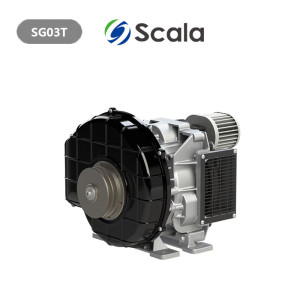

SG03T | 2.2 (3) | 0.8 | 2700 | 240 | Rp 3/8 | 414x325x293 | 15 |
1.0 | 2400 | 200 | |||||
SG04T | 3 (4) | 0.4 | 2850 | 440 | Rp 3/8 | 345x289x263 | 16 |
SG05T | 3.7 (5) | 0.8 | 3000 | 400 | Rp 3/8 | 446x341x311 | 23 |
1.0 | 2800 | 350 | |||||
SG06T | 5.5 (7.5) | 0.8 | 3150 | 600 | G 1/2 | 445x406x365 | 29 |
1.0 | 2800 | 505 | |||||
SG07T | 5.5 (7.5) | 0.4 | 2800 | 1000 | G 3/4 | 434x406x365 | 30 |
SG08T | 7.5 (10) | 0.8 | 3450 | 800 | G 1/2 | 460x405x354 | 32 |
1.0 | 3000 | 700 |
