5.5kw 7.5HP 4bar Oil Free Scroll air End for Iwata Hitachi Atlas Scroll air Compressor Replace
- Model
- SG07ZP
Item specifics
- Power
- 5.5Kw (7.5HP)
- Air flow (0.4Mpa)
- 1000L/min
- RPM (0.4Mpa)
- 2800
- Outlet
- G 3/4
- Dimensions
- 484x389x365 mm
- Weight
- 43Kg
- Color
- Silver
- Warranty
- 1 Year
- Place of origin
- Zhejiang, China
Review
Description
| Model | Power kW (HP) | Pressure Mpa | RPM | Air Flow L/min | Outlet | Dimension mm | Weight Kg |

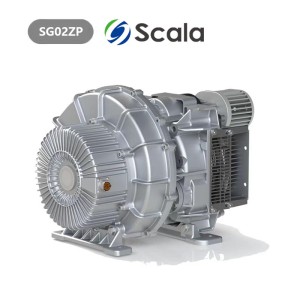

SG02ZP | 3 (4) | 0.8 | 3000 | 300 | Rp 3/8 | 449x325x292 | 25 |
1.0 | 2700 | 260 | |||||

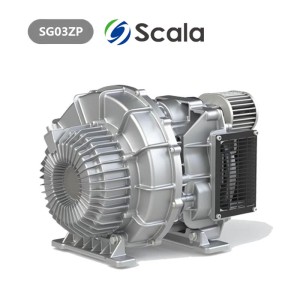

SG03ZP | 2.2 (3) | 0.8 | 2700 | 240 | Rp 3/8 | 434x325x287 | 22 |
1.0 | 2400 | 200 | |||||

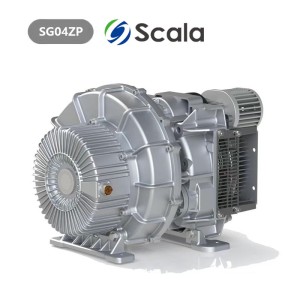

SG04ZP | 3 (4) | 0.4 | 2850 | 440 | Rp 3/8 | 345x289x263 | 25 |

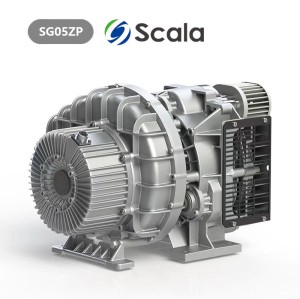

SG05ZP | 3.7 (5) | 0.8 | 3000 | 400 | Rp 3/8 | 500x355x312 | 36 |
1.0 | 2800 | 350 | |||||

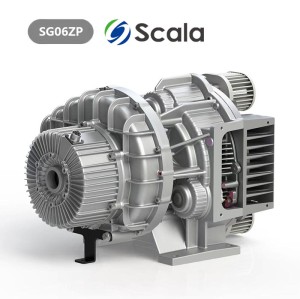

SG06ZP | 5.5 (7.5) | 0.8 | 3150 | 600 | G 1/2 | 500x387x343 | 42 |
1.0 | 2800 | 505 | |||||
SG07ZP | 5.5 (7.5) | 0.4 | 2800 | 1000 | G 3/4 | 484x389x365 | 43 |
SG08ZP | 7.5 (10) | 0.8 | 3400 | 800 | G 1/2 | 530x386x342 | 45 |
1.0 | 3000 | 700 |
