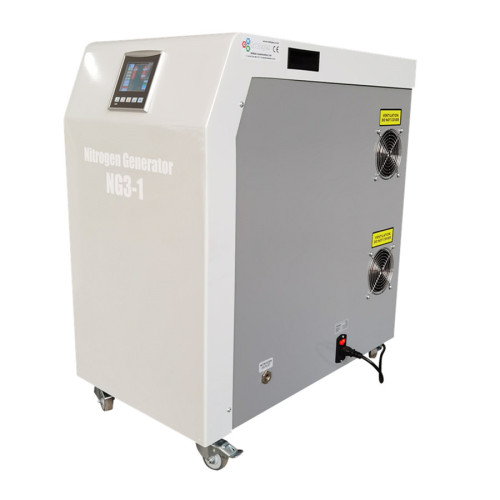

3Nl/min,99.9995% nitrogen gas generator for laboratory | ultra high purity nitrogen
- Price
- US $6500
- Model
- NG3-1
- MOQ
- 1 piece
Item specifics
- Nitrogen flow
- 3Nl/min
- Nitrogen purity
- 99.9995%( 5 ppm)
- Nitrogen outlet pressure
- 5.25 barg( 75 psig)
- Technology
- PSA
- Power
- 750W
- Power supply
- Single phase,230V-50HZ
- Dimensions(mm)
- 660(L) x 400(W) x 700(H)
- Weight
- 125kg
- Noise level
- 55dBA@1meter
Review
Description
‘LABGAS+ ’ - Intelligent Nitrogen Gas Generators
LABGAS+ is the latest range of ultra high purity Laboratory Nitrogen Generators from Scala Filtration. Utilising the reliable and efficient PSA technique of separating Nitrogen and Oxygen is used to produce high quality Nitrogen Gas at various flows and purities (see performance data sheets).
The Generators are controlled using the latest in HMI touch screen technology to display the process in real-time, inlet / outlet pressures, Trend graphs and much more......
Features
With Internal oil-free air compressor
Compact and Quiet design
Purity 99.9995%
Auto-run facility
Energy saving mode
Outlet flow indicator (% flow)
Trend graphs into MS excel
Alarms with help menu
Audible alarm sounder
Remote access via internet
Applications
Pharmaceutical & Laboratory:
General laboratory
GC
ELSD
LC/MS
ICP
TurobVap
LABGAS+ High Purity Nitrogen Generator range from Scala Filtration is your reliable and efficient alternative to conventional high pressure cylinder and liquid gas supplies. Taking away the on-going costs, safety considerations and transportation of traditional gas supplies, the ‘LABGAS + ’ on-site Nitrogen systems are some of the most advanced and intelligent available.
The control system gives the user all the information necessary to ensure an efficient and consistent supply of gas is always available. From the process to flow and alarms, including auto-start / stop function, Trend graphs, service alarm and service records page, there is simply no other laboratory nitrogen system quite like LABGAS +. TheLABGAS+ is one of the most economical range of nitrogen generators on the market for both purchase price and on-going running / maintenance costs. Together with our unrivalled experience and knowledge
Technical Data
|
Model
|
NG3-1 |
|||
|
Nitrogen outlet flow
|
3 Nl/min |
|||
|
Nitrogen purity
|
99.9995% ( 5 ppm ) |
|||
|
Nitrogen outlet pressure
|
5.25 barg (75 psig) |
|||
With air compressor | Yes | |||
Lifetime of air compressor | 5 years or 20,000 hours | |||
Power | 1500W | |||
Power supply | 230V,50Hz | |||
Dimension | 660x400x700mm | |||
Weight | 125Kg | |||
Noise level | 55dBA,at 1 meter | |||
